GAI 3621 FE CAN


General Details
Technical Info
Documents
General Details
GAI 3621 FE CAN
Production speed up to 3,600 bottles per hour.
Volumetric electro-pneumatic filling with a Trivolver single head seamer.

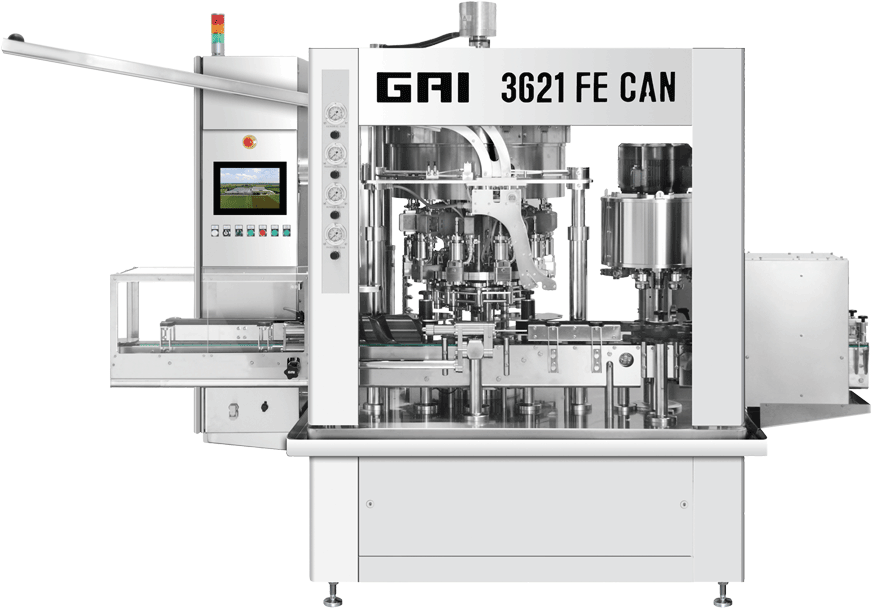

The GAI 3621 FE CAN monoblock has production speeds up to 3,600 cans per hour. Suitable for canning products from 0 to 4 bar working pressure.
Featuring a high pressure electro-pneumatic volumetric can filler on a 10 valve rotary turret. The TRIVOLVER single-head seamer offers the ability to use 3 different lid sizes without changeover parts. The ability to have nitrogen injection for canning still products, is also available upon request.
Technical Info
FUNCTION | 3621 FE CAN | |
Ø Can | inch | 2.04-2.68 |
Filler | # | 10 |
Single Head Seamer | # | 1+1+1 |
Output | gal/h | 423 |
Speed | can/h | 1000-4000 |
*Production referred to beer at : 2 bar, <+4°C. Speed referred to Lt 0,33 can
*Not binding data.
