CH 2010
Case sealing machine

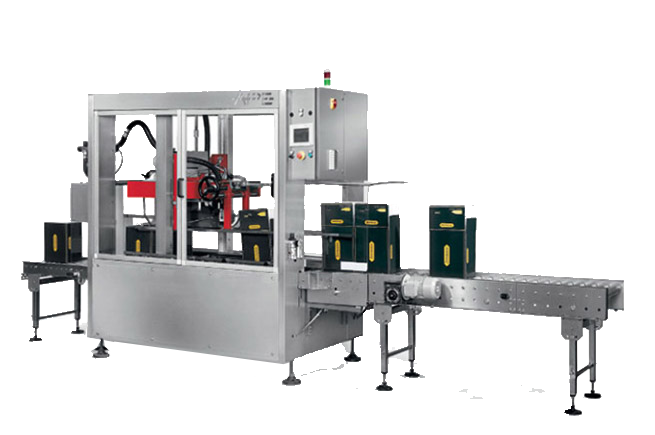

Case sealing machine CH 2010
-Bar-type case transfer powered by motor controlled by encoder. Motorized main motions controlled by encoder.
-Top flaps sealing by compression device while the case is stopped. PLC Siemens complete with touch-screen operator panel. Motorized adjustment of sealing unit height.
-Quick lifting system of the closing head
Nordson Hot Melt applicator with gun at 4 nozzles and glue heating timer programmable before starting of bottling line working.
-Quick format changeover thanks to self-centering side rails adjustable by using hand turnwheels. Available also in version with automatic motorized adjustment by operator panel.
Additional module for bottom and top adhesive tape sealing.
Optional special version to work élite.
Output up to: 2000 cartons/hour – 12,000 bottles/hour
