GAI 7000 SERIES
General Details
Technical Info
Documents
General Details

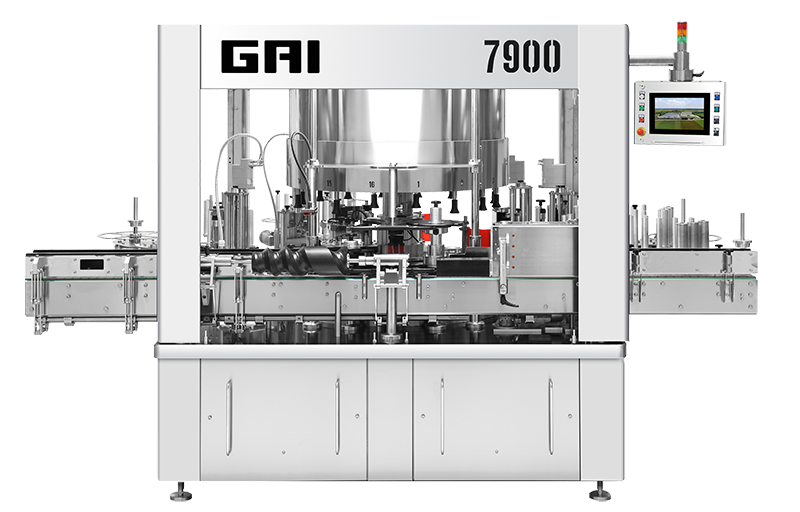

GAI Labellers – 7000 Series
SELF-ADHESIVE ROTARY LABELLING ONLY
The GAI 7000 rotary labelling series offers the ability to use a wide variety of bottle shapes and sizes. Used for the application of front, back and neck labels with exact orientation. Mechanical or electronic pedestals are available. The 7000 series has the ability to have up to 4 labelling stations on certain models.
The 7000 series has been designed to work from 1,000 to 10,000 bottles per hour.
Technical Info
| FUNCTION | 7400-4 | 7400-6 | 7540-4 | 7540-6 | 7540-8 | |
| Plates | # | 4 | 6 | 4 | 6 | 8 |
| Labeller speed | b/h | 1000-3000 | 1500-4500 | 1000-3000 | 1500-4500 | 2000-6000 |
| Labelling stations | # | 3 max | 3 max | 4 max | 4 max | 4 max |
| FUNCTION | 7700-6 | 7700-8 | 7700-10 | 7700-12 | 7900-16 | |
| Plates | # | 6 | 8 | 10 | 12 | 16 |
| Labeller speed | b/h | 1500-4500 | 2000-6000 | 2500-7500 | 3000-9000 | 4000-12000 |
| Labelling stations | # | 4 max | 4 max | 4 max | 4 max | 4 max (5) |
*Not binding data.
