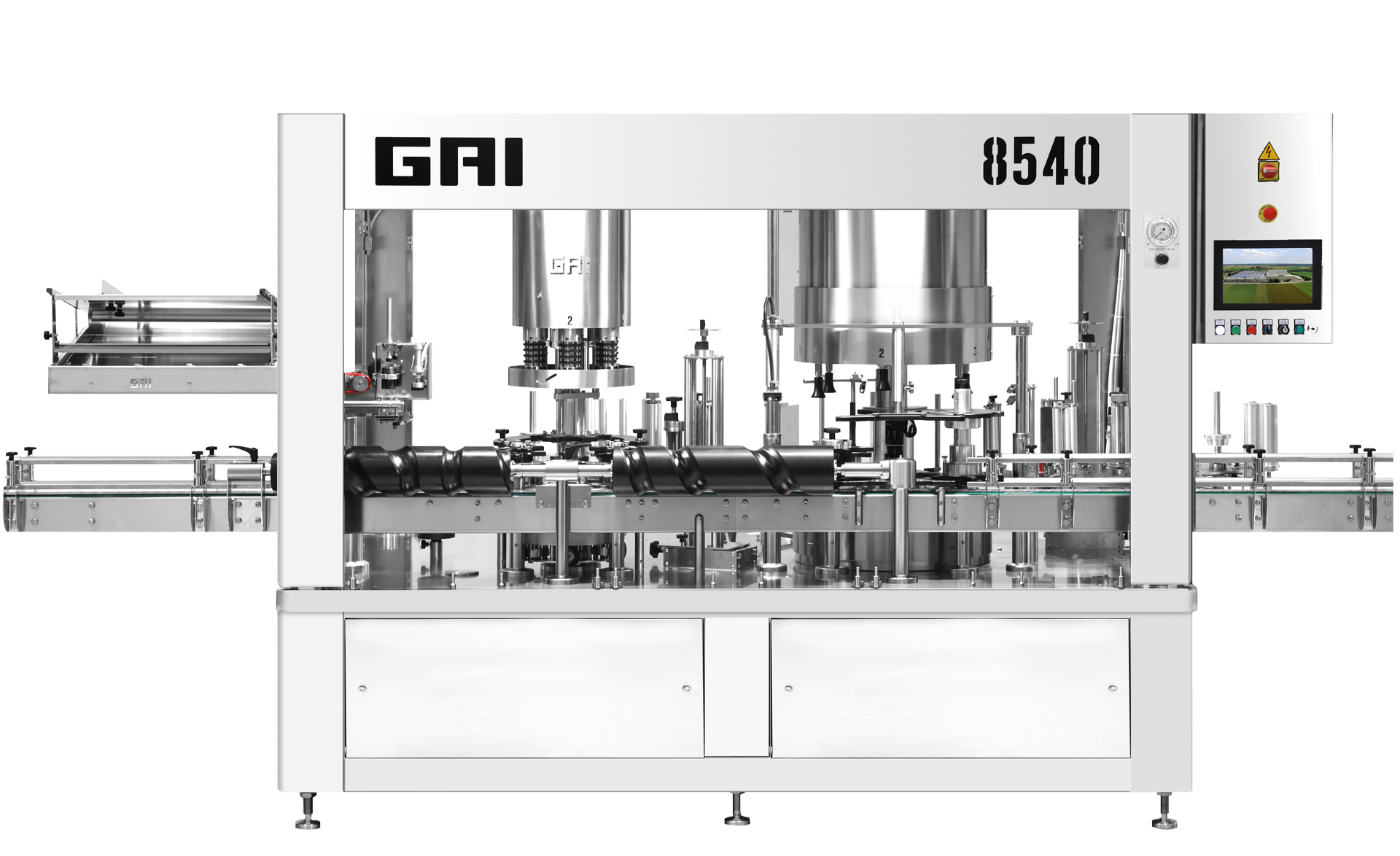

GAI Labellers – 8000 Series
CAPSULE DISPENSING, HEAT SHRINK OR SPINNING HEADS AND SELF-ADHESIVE ROTARY LABELLING
The GAI 8000 rotary labelling series offers capsule distribution, heat shrink or spin capsule application along with labelling. They offer the ability to use a wide variety of bottle shapes and sizes. Used for the application of capsules, front, back and neck labels with exact orientation. Mechanical or electronic pedestals are available. The 8000 series has the ability to have up to 4 labelling stations on certain models.
The 8000 series has been designed to work from 1,000 to 4,000 bottles per hour.
Technical Info
| FUNCTION | 8400-4 | 8400-6 | 8540-4 | 8540-6 | |
| Head Dispenser | n | 1 | 1 | 1 | 1 |
| Shrinking heads | n | 1 | 1 | 1 | 1 |
| Shrinking speed | b/h | 1000-3000 | 1500-3000 | 1000-3000 | 1500-3000 |
| Sleeking heads | n | 6 | 6 | 6 | 6 |
| Sleeking speed | n | 1000-3000 | 1500-4000 | 1000-3000 | 1500-4000 |
| Labelling Plates | n | 4 | 6 | 4 | 6 |
| Labeller speed | b/h | 1000-3000 | 1500-4000 | 1000-3000 | 1500-4000 |
| Labelling Station | n | 3 max | 3 max | 4 max | 4 max |
*Not binding data.
