General Details

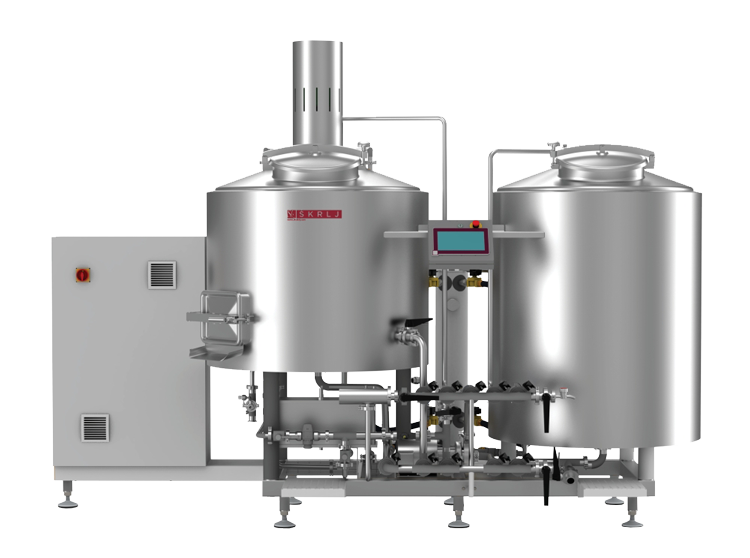

SK Compact Brewhouse Mini Series – BHM
SK’s compact brewhouse mini series is an all in one design with a system of process tanks and controls for the brewing process, from mashing to fermentation. Customized design to meet your brewing requirements.
Design Features:
- Compact, all-in-one design, combi and multifunctional tanks in different combinations.
- Vessels equipped with thermal oil heated bottom
- Integrated electric oil heater
Insulated jacket - Mounted on Stainless steel frame, completely wired & piped.
- CIP system, polished internal tank surface and welds for sanitation
User Friendly:
- User friendly interface system for control and monitoring
- Manual control of pump, flow regulation, temperature control
- Organized manifold system for easy operator access
- Programmable knockout time
- Polished internal surface and welds for sanitary cleaning
Available in 2 different sizes:
BHM 2 bbl – (250 L / 2.1 bbl)
BHM 4 bbl – (500 L / 4.2 bbl)
Technical Info
| MINI BREWHOUSE | BHM 2BBL O/S | BHM 4BBL O/S | |
| MM/LT volume (1) | bbl | 2.2 | 4.5 |
| K/W volume (2) | bbl | 2.9 | 5.7 |
| MM/LT diameter (D1) | inch | 30.1 | 41.0 |
| K/W diameter (D2) | inch | 34.0 | 41.0 |
| Height (H1) | inch | 50.6 | 55.7 |
| Height (H2) | inch | 50.6 | 58.6 |
| Total height (H3) | inch | 76.4 | 74.0 |
| Length (L) | inch | 93.7 | 102.0 |
| Length (L+) | inch | / | 31.5 |
| Total width (W) | inch | 47.2 | 52.5 |
| Electric power | kw | 20 | 38 |
