SK MINI SERIES TANKS - LMX / ZMI & ZMX / ZMI

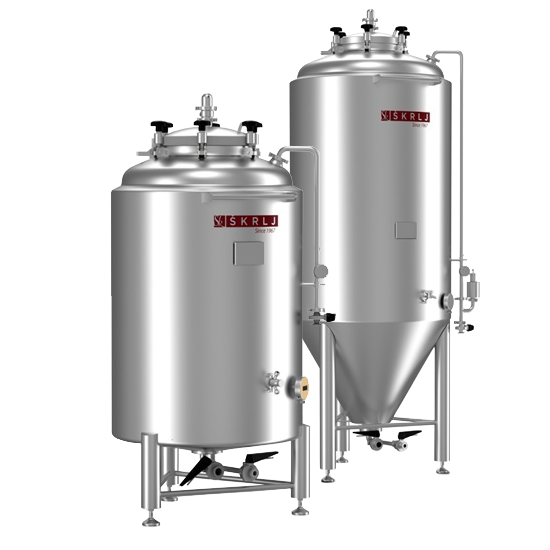

MINI Insulated Fermenter & Brite Beer Tanks – LMIX / ZMIX
The SK designs compact brite and fermentation pressure tanks.
LMX: Cylindrical, brite beer pressure tanks with single wall design, without insulation.
LMI: Cylindrical, brite beer pressure tanks with insulated, double jacket design for temperature control.
ZMX: Cylindroconical fermentation tank, single wall design, without insulation.
ZMI: Cylindroconical fermentation tank with insulated, double jacket design for temperature control.
Customized components and options available.
Available in sizes:
250 L (2.1 bbl)
500 L (4.2 bbl)
1000 L (8.5 bbl)
Material:
- Stainless steel AISI 304
Design:
- Cylindrical & cylindroconical pressure tanks manufactured in accordance with the PED Directive (2014/68/EU)
- Single wall design, without insulation
- Laser welded double wall design, with insulation
- CIP tube with cleaning head
- Internal product contact surface: smooth, bright & reflective
- External visible surface: scotch brite
- Pressure gauge, pressure valve, safety valves, ports and valves.
- Manway, level indicator, sample valve.
Operating pressure: 0 to 2.5 bar
Operating temperature: 0 to 50 °C / 32 to 122 degrees F
| TANKS ZMIX | Nominal Volume | Geom. Volume | Diameter int./ext. | Tank Wall | Legs | Total Height |
| gal | gal | inch | inch | inch | inch | |
| 2.1 BBL | 66.0 | 81.9 | 25.6/29.5 | 29.5 | 11.8 | 72.8 |
| 4.2 BBL | 132.1 | 166.2 | 31.1/35.0 | 45.3 | 31.5 | 88.6 |
| 8.5 BBL | 264.2 | 338.1 | 39.3/43.3 | 49.2 | 43.3 | 108.3 |
| TANKS LMIX | Nominal Volume | Geom. Volume | Diameter int./ext. | Tank Wall | Legs | Total Height |
| gal | gal | inch | inch | inch | inch | |
| 2.1 BBL | 66.0 | 76.6 | 25.6/29.5 | 29.5 | 11.8 | 57.1 |
| 4.2 BBL | 132.1 | 153.3 | 31.1/35.0 | 45.3 | 15.7 | 71.3 |
| 8.5 BBL | 264.2 | 303.5 | 39.3/43.3 | 49.2 | 15.7 | 84.1 |
*Not binding data.
Contact us for a custom sized tank!
