General Details

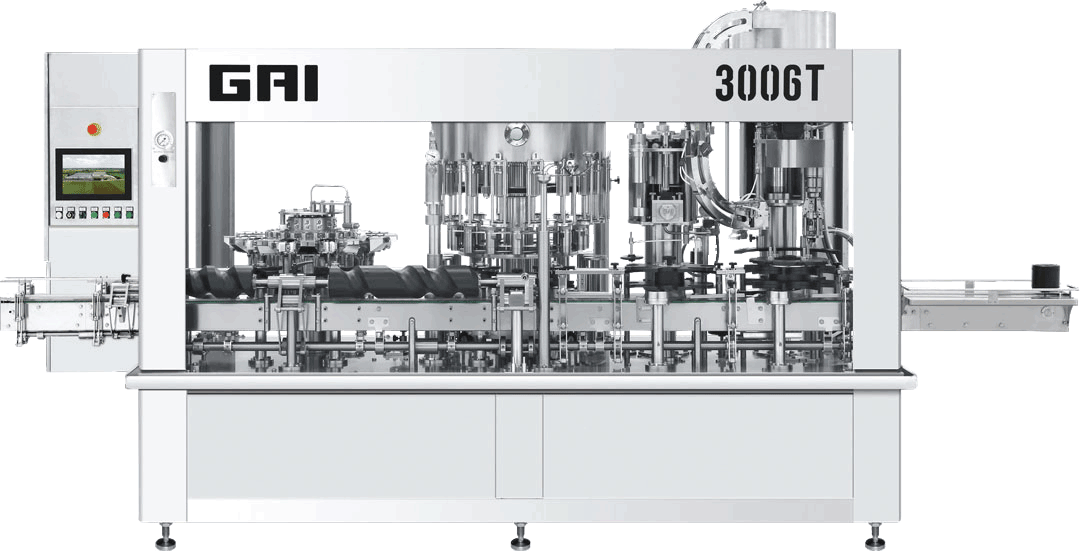

GAI ‘6X Series
Production speeds up to 3,000 bottles per hour for still products.
Rinsing, Deaeration, Filling, Inert Gas Levelling, Vacuum Corking with Additional Closure Turret Option Available
The GAI ‘6X series is the accumulation of the entire X series features and options. Offering all monoblock capabilities from rinsing to multiple closure applications. These monoblocks have the option of standard block, adjustable or universal change parts. Universal feed screws are also available on select models. There are a range of options available to customize your machine.
Technical Info
| FUNCTION | 1006 | 1306 | 1706 | 2106 | 3006 | |
| Rinser | # | 6 | 9 | 9 | 10 | 12 |
| Deareation | # | 1 | 1 | 1 | 1 | 1 |
| Filler | # | 6 | 8 | 10 | 12 | 16 |
| Gas Injector | # | 1 | 1 | 1 | 1 | 1 |
| Corker | # | 1 | 1 | 1 | 1 | 1 |
| Capper | # | 1 | 1 | 1 | 1 | 1 |
| Output | l/h | 750 | 1000 | 1500 | 2000 | 3000 |
| Speed | b/h | 300-1200 | 400-1600 | 600-2400 | 600-3000 | 600-3000 |
| Power | kw | 4.2 | 4.2 | 4.2 | 4.7 | 5 |
*Not binding data.
