GAI LP SERIES

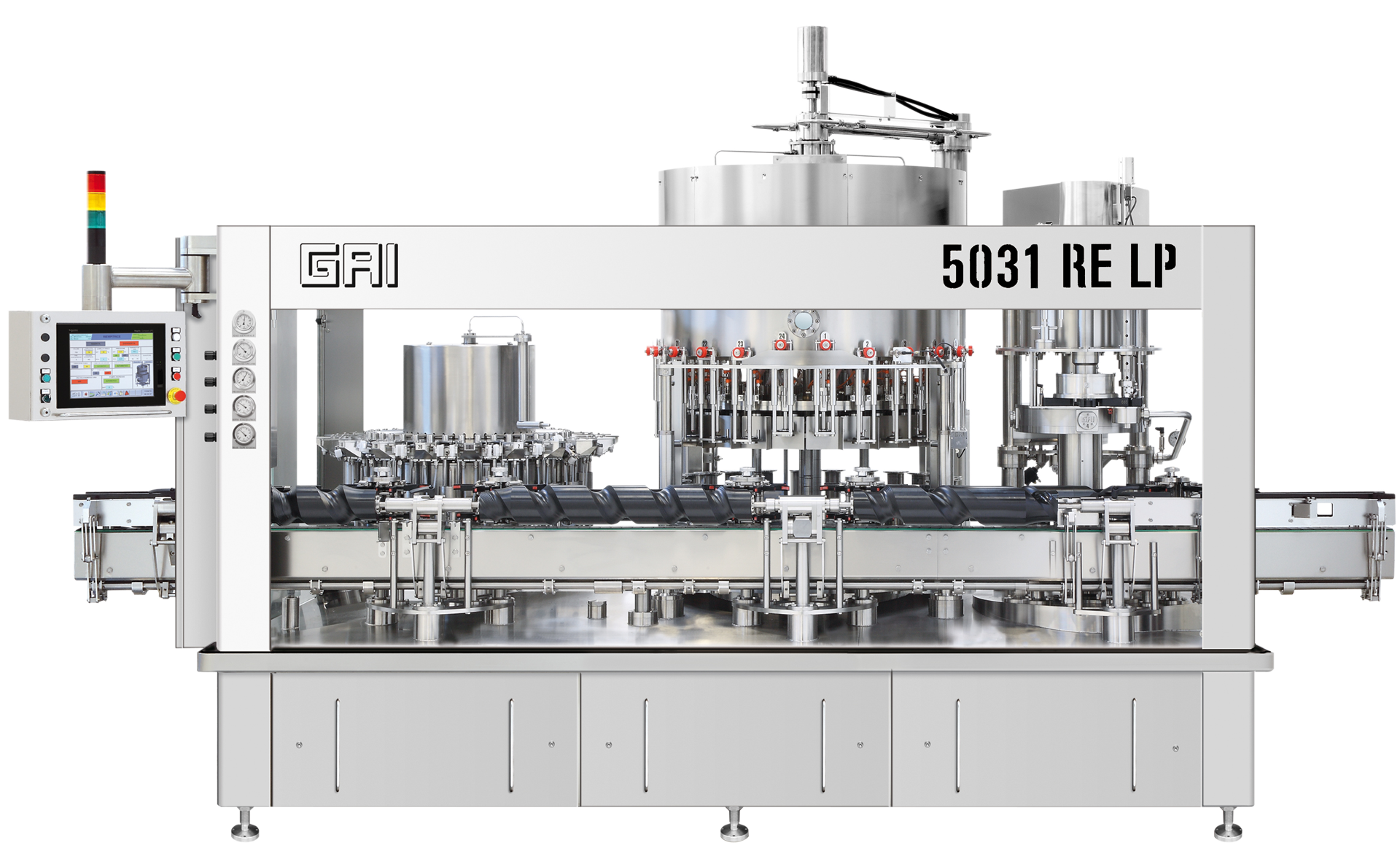

GAI LP Series
Production speed from 600 to 20,000 bottles per hour.
Filling Still and Carbonated products from 0 to 1 BAR Working Pressure
Rinsing, filling with electro-pneumatic valve, vacuum corking with additional closure turret option available.
The GAI LP (Light Pressure) series is an innovative design that is suitable for a wide range of products including carbonated and still products as well as other beverages that require extreme care in terms of oxidation and foam formation. The GAI ‘Unica’ valve consists of 4 electro-pneumatic valves that control vacuum, deaeration & gassing of bottle, filling, auto levelling and counter pressure degassing.
Additional options available to customize monoblock.
The LP Series comes in 2 design models:
RE series – Roof deck / sloped base, with an Electro-pneumatic filling valve
FE series – Flat deck / flat base, with an Electro-pneumatic filling valve
| FUNCTION | 3032 RELP | 4032 RELP | 5032 RELP | 6032 RELP | 7032 RELP | 8032 RELP | 9032 RELP | 10032 RELP | |
| Rinser | # | 12 | 16 | 20 | 20 | 24 | 28 | 32 | 36 |
| Filler | # | 20 | 20 | 24 | 28 | 32 | 36 | 40 | 45 |
| Corker | # | 1 | 3 | 4 | 4 | 5 | 6 | 6 | 8 |
| Capper | # | 1 | 3 | 4 | 4 | 5 | 6 | 6 | 8 |
| Still wine production | l/h | 3000 | 3000 | 3750 | 450 | 5250 | 6000 | 6750 | 7500 |
| Speed | b/h | 1000-3000 | 1500-4000 | 1500-5000 | 1500-6000 | 1500-7000 | 2000-8000 | 2000-9000 | 2000-10000 |
*Not binding data.
