SK MB4 - 15BBL
SK Microbrewery: MB4 -15BBL

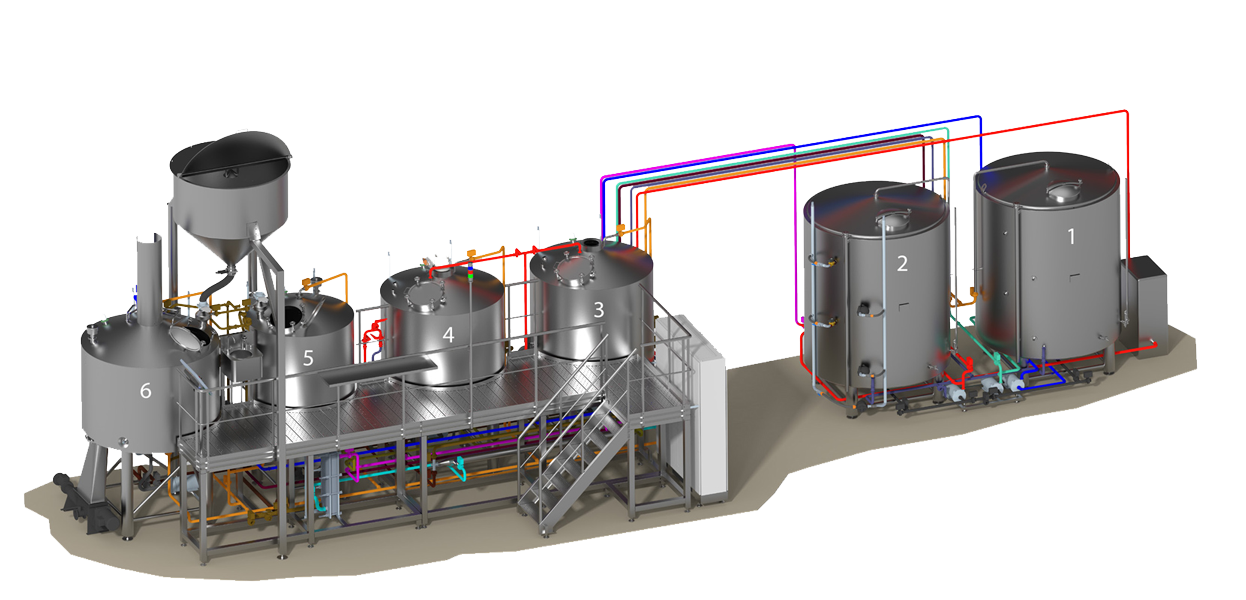

Composed by:
1 Lauter
2 Mash Mixer
3 Kettle / Whirlpool
4 Kettle / Whirlpool
5 Hot Water Tank
6 Cold Water Tank
– We plan and design complete medium-sized breweries, all systems can be designed with the client’s input for a defined process;
– a variety of different vessel combinations and a number of vessels: multifunctional tanks (mash mixer
– lauter, kettle – whirlpool), individual process tanks (mash mixer, lauter, boil kettle, whirlpool, hot/cold water tanks);
– fully piped and wired, including valves and sensors;
– integrated pump system;
– CIP system: separated CIP for individual tanks to prevent cross product interference;
– master brew interface control system (touch screen control panel),
– staircases and platform combine the vessels in a compact unit, perforated and sectional construction of the walk-on surface ensures protection against slipping;
– automated lautering, automated water mixing.
| 12 °P beer | MB4 – 15 BBL |
| Volume | 15 BBL finished beer |
| Load | 155 kg/m2 – 400 kg-882 Ib |
| Max. load | 300 kg/m2 – 800 kg (use of rice husks, slow lautering) |
| Process loss | 15 % (depends on many factors) |
| Mash in | every 1,5-2 h (depends on number of steps) |
| Efficency | up to 90% |
| Annual production capability | MB4 – 15 BBL |
| Capacity per year at 12h/day production | 15000 bbl |
| Capacity per year at 24h/day production | 30000 bbl |
| Dimensions | MB4 – 15 BBL | |
| Length (with grist case) | inch | 636 |
| Depth | inch | 155 |
| Height | inch | 227 |
