Sorting Tables

CMA S800

Production capacity of 2-10 tons per hour.
Belt sorting table for manual sorting of whole or destemmed grapes from unwanted material.

The CMA S800 belt sorting tables are designed for ease in placement and work ability. The S800 series is easy to operate and easy to clean with adjustable side channels for debris removal. Mounted on a Stainless steel frame with adjustable legs with locking castor wheels for maneuverability. The rotating food grade PVC belt has adjustable speeds and a juice collection pan with tri-clover fittings.

Available sizes from 2.5 to 4.o meter (8 to 13 feet)

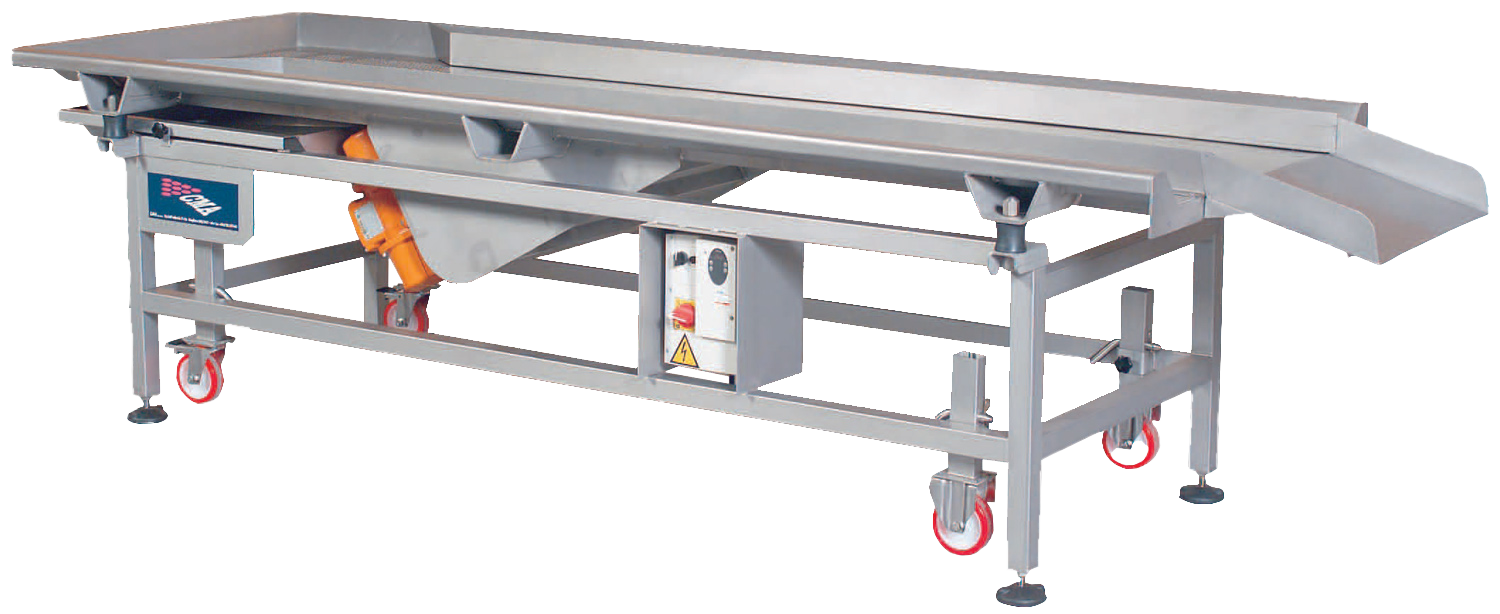

CMA SV800

Production capacity of 2-10 tons per hour.
Vibrating sorting tables for whole or destemmed grape sorting.

The CMA SV800 vibrating sorting tables are designed with adjustable vibration, perforated Stainless steel inlet screen and a juice collection pan. The vibrating table is equipped with adjustable, anti-vibration legs and locking castor wheels for easy mobility.

Available sizes from 2.5 to 4.o meter (8 to 13 feet)

CMA Rolltec

Production capacity:  1-25 tons per hour.
Automatic sorting table for post-destemmed or machine harvested grape sorting.

CMA Rolltec automatic sorting unit is designed with 2 rollers sizes that are adjustable for different size berry selection.  Selected fruit sizing drops through the adjustable rollers while the leaves, stalks and other unwanted debris are carried to discharge.  The Rolltec is on an adjustable Stainless steel frame with locking castor wheels.  The control panel is on an adjustable rotating arm with an adjustable speed control.
