General Details

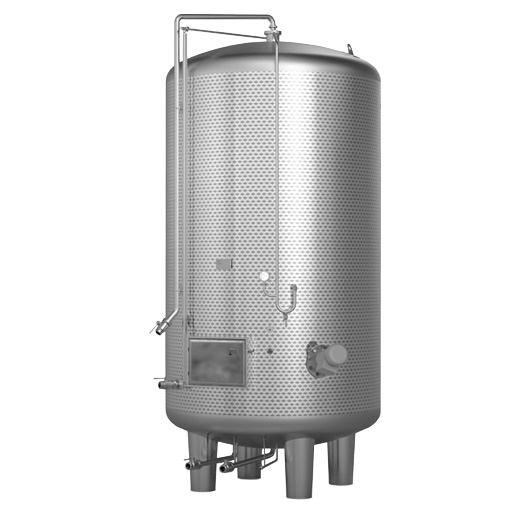

SK Sparkling Wine Tanks – RTIU
SK’s sparkling wine pressurized tanks are designed for secondary fermentation of sparkling wine and manufactured with a maximum operating pressure of 6 bar. These vertical cylindrical tanks have dished top and bottom and are equipped with laser welded (pillow-plate) jackets for temperature control. The sparkling tanks are equipped with a pressure valve, a racking valve, a safety valve, level indicator, manometer, agitator, thermometer. An assortment of accessories available to choose from.
Available in sizes from 264 to 4000 gal.
Technical Info
| FUNCTION | RTIU264GAL | RTIU500GAL | RTIU1000GAL | RTIU2000GAL | RTIU4000GAL |
| Nominal volume | 264 gal | 500 gal | 1000 gal | 2000 gal | 4000 gal |
| Geometrical volume | 312 gal | 538 gal | 1110 gal | 2155 gal | 4161 gal |
| Diameter | 43.3 inch | 55 inch | 67 inch | 79 inch | 87 inch |
| Wall height | 49.2 inch | 59 inch | 130 inch | 108 inch | 177 inch |
| Total height | 84.6 inch | 103 inch | 130 inch | 146 inch | 224.5 inch |
| Nr. of legs | 4 | 4 | 4 | 4 | 4 |
| Weight | – | – | – | – | – |
*Not binding data.
Contact us for a custom sized tank!
