GAI '5X SERIES
General Details
Technical Info
Documents
General Details

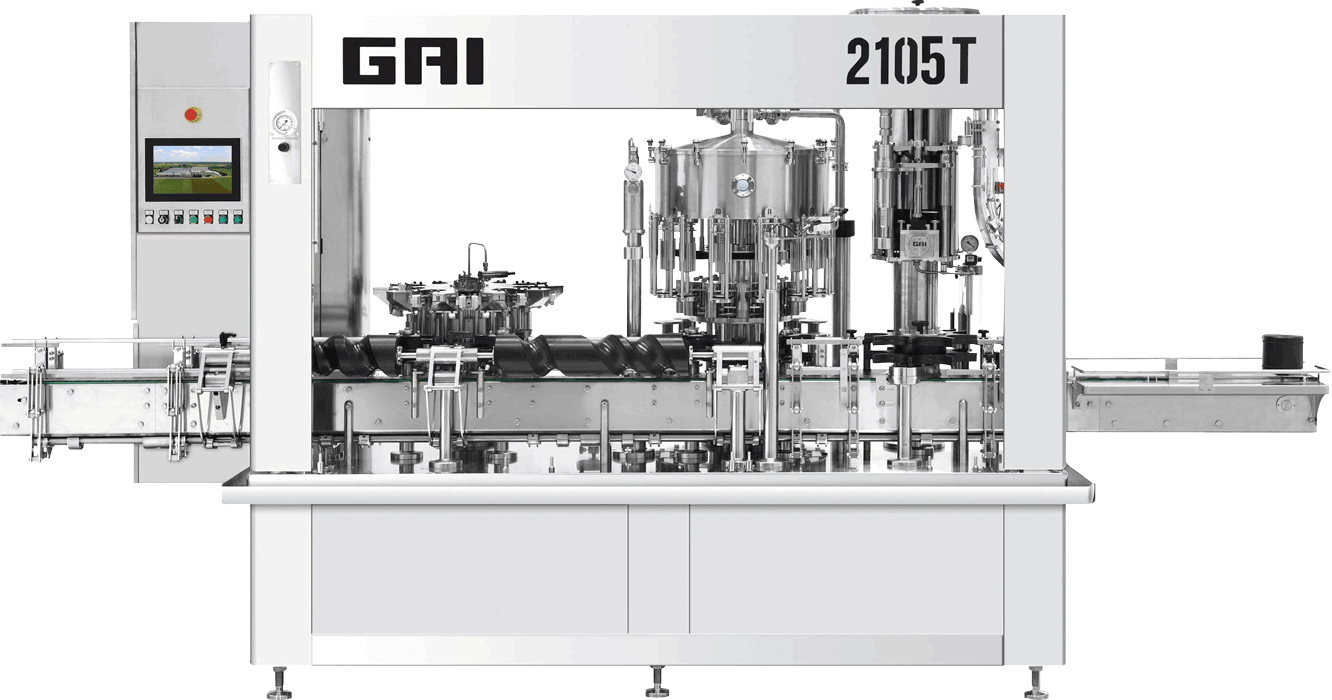

GAI ‘5X Series
Production speeds up to 3,000 bottles per hour for still products.
Rinsing, Deaeration, Filling, Inert Gas Levelling and Vacuum Corking and Capping.
The GAI ‘5X series includes an internal bottle rinsing turret prior to deaeration. Upon request, a 2 stage rinsing turret can be added for internal rinsing and gassing. These monoblocks have the option of standard block, adjustable or universal change parts. Universal feed screws are also available on select models. There are a range of options available to customize your machine.
Technical Info
| FUNCTION | 1005 | 1305 | 1705 | 2105 | 3005 | |
| Rinser | # | 6 | 9 | 9 | 10 | 12 |
| Deaeration | # | 1 | 1 | 1 | 1 | 1 |
| Filler | # | 6 | 8 | 10 | 12 | 16 |
| Gas Injector | # | 1 | 1 | 1 | 1 | 1 |
| Corker | # | 1 | 1 | 1 | 1 | 1 |
| Output | l/h | 750 | 1000 | 1500 | 2000 | 3000 |
| Speed | b/h | 300-1200 | 400-1600 | 600-2400 | 600-3000 | 600-3000 |
| Weight | kw | 1550-1700 | 1800-1900 | 1850-1950 | 1900-2000 | 2800-2900 |
*Not binding data.
