100 Plate 40×40 Pad Filter
FP-ITAL/ 4 – 40×40 Ital Filter PFK 100 Plate Press Filter

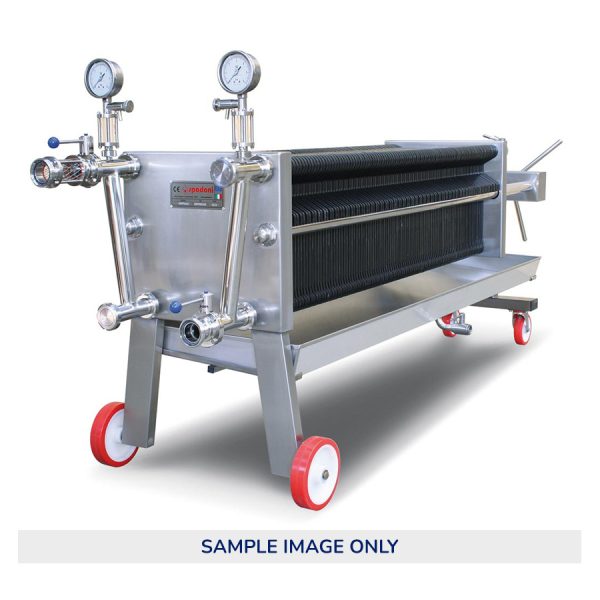

Ital pad filter PFK 40×40 with 100 plates is made of AISI 304 Stainless steel and includes Noryl plates which are steam resistant. Filter includes 1 1/2″ triclover butterfly valves, pressure gauges, sample valves, sight glass and gaskets. Mounted on wheels for easy movement. All filters are equipped with external piping.
FP-ITAL/ 4 Mobile AISI 304 Stainless steel plate covered steel frame on wheels, AISI 304 drip tray with bottom outlet.
Inquire TodayDescription
TECHNICAL DATA:
- Filtering unit composed of AISI 304 Stainless steel.
- All plates are suitable for the use of pad filters at low working pressure.
- Two 1.5” triclover butterfly valves
- Includes two pressure gauges, two sample valves, two sight glasses, and gaskets
- Mounted on wheels for easy movement.
- Filtering plates compressed by adjustable mechanical screw.
- Drip collecting tray made in Stainless steel.
- Up to 100 plates can be installed on the frame.
- Includes 100 Noryl plates 40 x 40 which are steam resistant.
- OPTIONAL: DOUBLE FILTRATION PLATE
