3 Ton Glycol Chiller – American Made

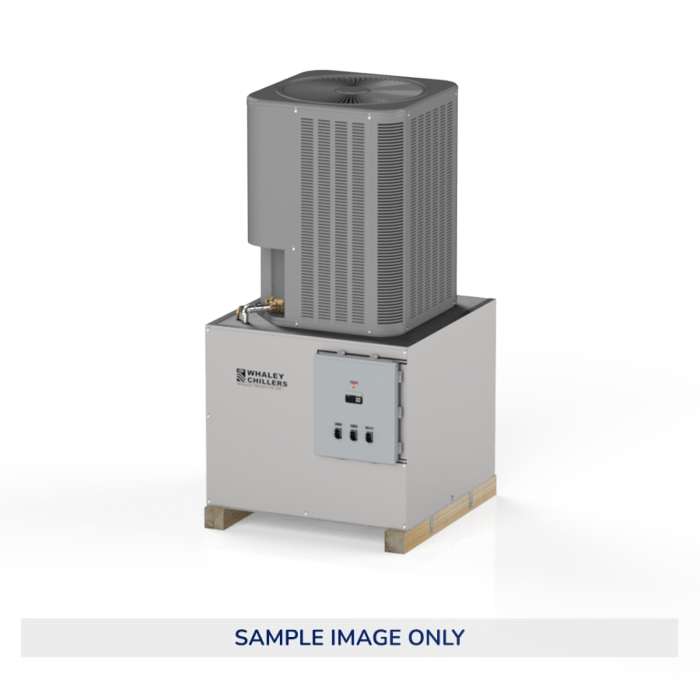

SA3-3-2P30T – Packaged Air Cooled Chiller

Self-contained industrial packaged air-cooled chiller that are easy to install, low water usage and no mechanical room requirements. This unit can be installed indoors or outdoors and has a minimal footprint.



STANDARD FEATURES

  • High Efficient R-410A Refrigerant
  • Copeland Scroll compressor(s)
  • Insulated Stainless steel copper-brazed plate evaporator(s) (others available)
  • Cast iron end suction centrifugal supply pump rated at 2.4 gpm per ton at 100 feet TDH (Stainless available)
  • Insulated polypropylene reservoir with fill port and liquid level sight glass (larger volumes available)
  • Thermostatic expansion valve, filter drier, sight glass installed on refrigerant circuit(s)
  • Service ports and valves
  • NEMA 4 control panel with digital temperature controller
  • High and low pressure safety
  • Single point power connection
  • Direct drive fan(s) made to run slower and more quiet
  • Vertical air discharge fans minimizes operating sound
  • Weather resistant fan motor made to survive in the elements.
  • Highly efficient coil provides excellent heat transfer and low air resistance
  • Energy Star qualified unit
  • Assembled, plumbed, and wired on industrial epoxy-coated steel frame
  • Refrigerant circuit(s) pressure tested for leaks with nitrogen charge
  • Refrigerant circuit(s) vacuum tested for leaks to negative-psi pressure
  • Refrigerant circuit(s) fully charged with refrigerant
  • Hydronic circulation loop leak tested under full flow using the WHALE-SOFT™ Testing Platform
  • Complete systems fully run tested under heat load using the WHALE-SOFT™ Testing Platform
Description

TECHNICAL DATA:

  • Cooling Performance at 50F Glycol / 95F Ambient / 0% Glycol
  • Nominal Tons: 3 Tons
  • Power: 10.53 kw (14 hp)
  • BTU/hr: 36,000



  • Cooling Performance at 25F Glycol / 95F Ambient / 50% Glycol
  • Nominal Tons: 1.70 Tons
  • Power: 5.96 kw (7.9 hp)
  • BTU/hr: 20,376



Refrigeration Circuit Details:

  • Refrigeration circuit Qty: 1
  • Configuration: Single circuit
  • Compressor Qty: 1
  • Evaporator Qty: 1
  • Condenser Qty: 1



Pump and Tank Details:

  • Supply Pump Flow & Pressure: 12 gpm @ 100′ tdh (43 psi)
  • Tank Volume: 30 gallon

Connections:

  • Inlet/Outlet: 1.0 inch FNPT





Physical Data:

  • Length: 36 inches
  • Width: 36 inches
  • Height: 63.25 inches ~ 71.25 inches



Electrical Specifications:

  • Voltage: 2 08-240v / 3-phase / 60hz
  • UNIT FLA: 17.7
  • UNIT MCA: 22.125
  • UNIT MOCP: 30.0
