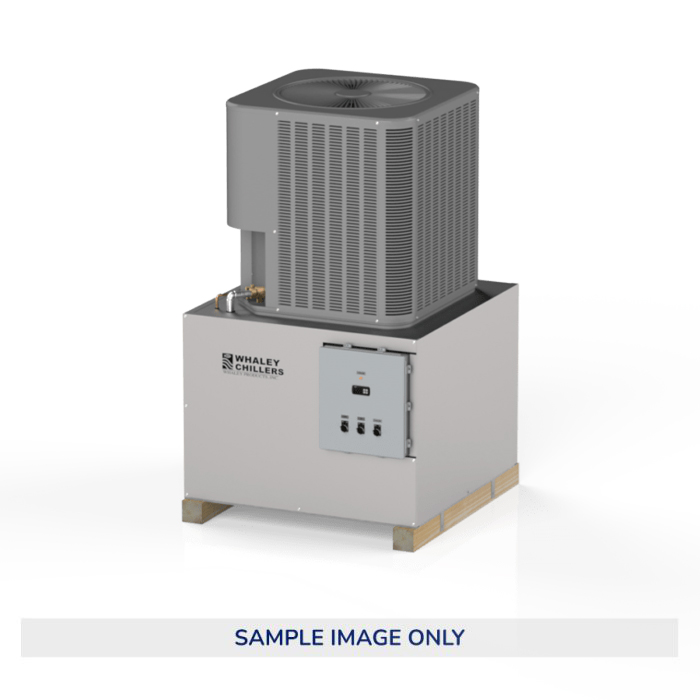

5 Ton Glycol Chiller – American Made

SA5-3-2P30T – Packaged Air Cooled Chiller
Self-contained industrial packaged air-cooled chillers that are easy to install, have low water usage, and require no mechanical room requirements. This unit can be installed indoors or outdoors and has a minimal footprint.

STANDARD FEATURES:

• High Efficient R-410A Refrigerant
• Copeland Scroll compressor(s)
• Insulated Stainless steel copper-brazed plate evaporator(s) (others available)
• Cast iron end suction centrifugal supply pump rated at 2.4 gpm per ton at 100 feet TDH (Stainless available)
• Insulated polypropylene reservoir with fill port and liquid level sight glass (larger volumes available)
• Thermostatic expansion valve, filter drier, sight glass installed on refrigerant circuit(s)
• Service ports and valves
• NEMA 4 control panel with digital temperature controller
• High and low pressure safety
• Single point power connection
• Direct drive fan(s) made to run slower and more quiet
• Vertical air discharge fans minimizes operating sound
• Weather resistant fan motor made to survive in the elements.
• Highly efficient coil provides excellent heat transfer and low air resistance
• Energy Star qualified unit
• Assembled, plumbed, and wired on industrial epoxy-coated steel frame
• Refrigerant circuit(s) pressure tested for leaks with nitrogen charge
• Refrigerant circuit(s) vacuum tested for leaks to negative-psi pressure
• Refrigerant circuit(s) fully charged with refrigerant
• Hydronic circulation loop leak tested under full flow using the WHALE-SOFT™ Testing Platform
• Complete systems fully run tested under heat load using the WHALE-SOFT™ Testing Platform
