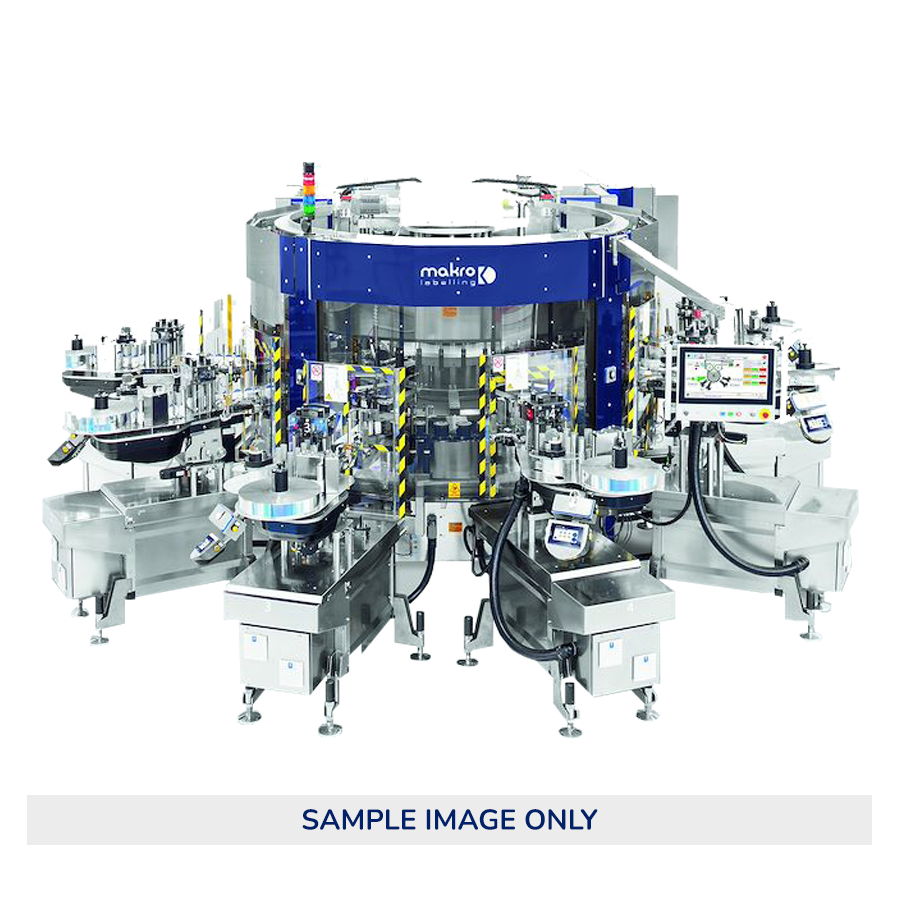

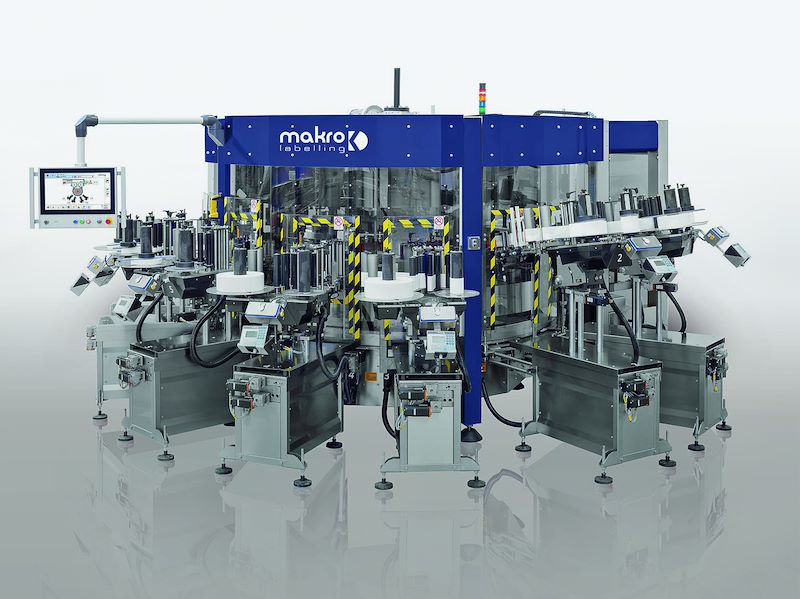

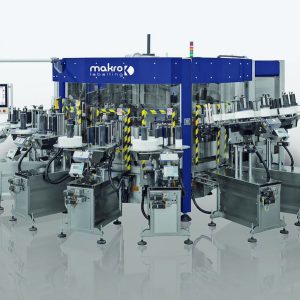

Mak Rotary Self-Adhesive Labeler – Up to 10 Removable Modules
Self-Adhesive – Mak Rotary Up to 10 Removable Modules
Medium to large labelling machines for high production speeds, integrable with multiple applications and the non-stop system.
Large carousel size allows the labelling machine to achieve particularly high production speeds (up to 50,000 b/h).
Large size ensures that the operator works in perfect comfort, safety and practicality, facilitating machine cleaning operations.
There is plenty of space for addition of pre-unwinders onto the self-adhesive labelling unit to permit non-stop production.
The MAK Rotary permits integration of a number of different applications for centring, such as Raptor and Follower, and control systems such as Alice.
- High performing
- Modular
- Flexible
Description
Machines
| Model | Speedb/h | Machine ⌀ mm |
Platform | Stations |
|---|---|---|---|---|
| MAK-4 | 10.000 – 40.000 | 1350 | 10 up to 40 | 1 up to 6 |
| MAK-5 | 12.000 – 48.000 | 1560 | 12 up to 48 | 1 up to 6 |
| MAK-6 | 16.000 – 55.000 | 1800 | 16 up to 40 | 1 up to 7 |
| MAK-7 | 16.000 – 55.000 | 2160 | 20 up to 50 | 1 up to 8 |
| MAK-8 | 16.000 – 55.000 | 2340 | 24 up to 54 | 1 up to 10 |

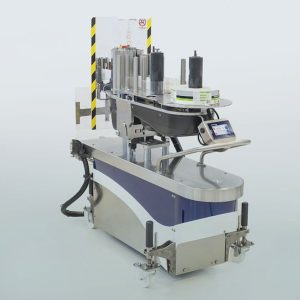

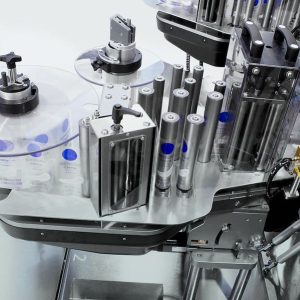

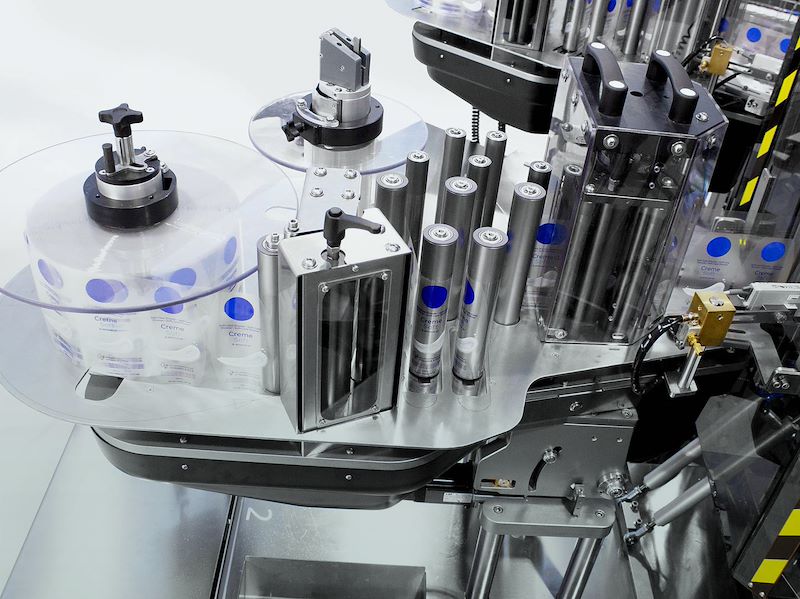

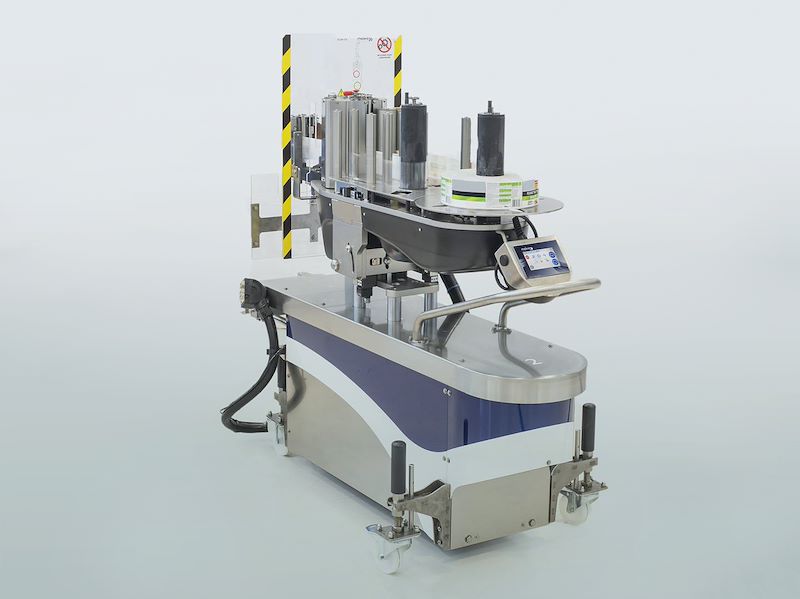

Labelling units
| Station | Production speed m/min |
Reel ⌀ mm |
Model |
|---|---|---|---|
| SLIM 85 | 85 | 400 | MAK-4/5/6 |
| SLIM 100 | 85 | 400 | MAK-4/5/6/7/8 |
| MAK-AHS2 | 100 | 400 | MAK-4/5/6/7/8 |
- Modular rotary labelling machines for high production speeds
- High-speed labelling stations, MAK-HS2 model
- Fast interchangeability between different technology modules
- Ease of maintenance and format changeover
