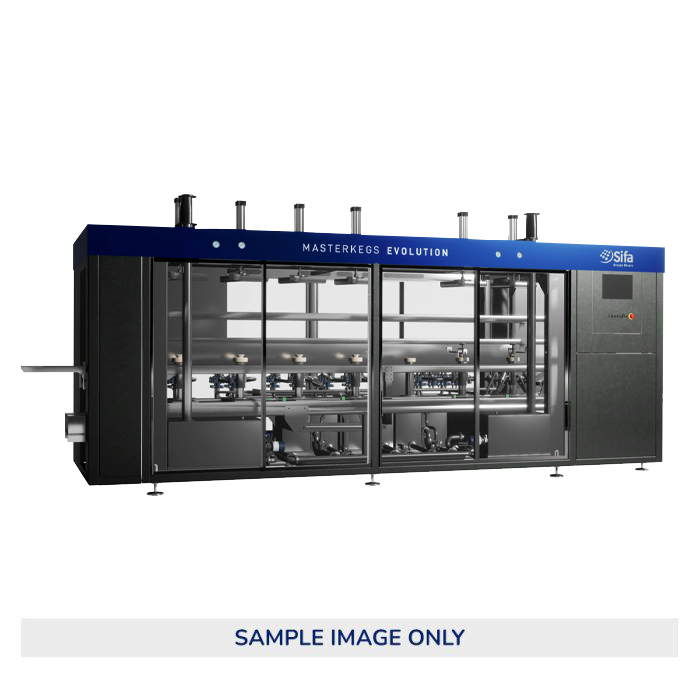

Masterkeg Evolution MB 42 – Automatic Keg Washer/Filler

Masterkegs Evolution MB 42 – Automatic Keg Washer/Filler

Used for filling and washing of Stainless steel kegs, SIFA recommends Masterkegs Evolution: a range of machines designed and made with special care paid to hygiene and available in different sizes and models. The unique design of this model, patented by Gruppo Bisaro, is having the partial recovery of the washing water to halve the consumption of water compared to the classic lines. The entire structure of the machine and the parts that are contact with the liquid are entirely made out of AISI 304 Stainless steel. The filling head was designed to exclude any type of contact with air on the part of the product being worked and to ensure a filling that’s completely sterile. The washing systems were conceived to ensure: a) thorough cleaning b) checking and monitoring of the rinsing phase c) at the end of every work phase, checking for the absence of liquid in the kegs. The systems are fitted for connection with a steam generator for hot sterilization of the containers. The command and control parts are positioned in a waterproof control board and electronically managed by a PLC. The valves for the controlling of the washing and filling cycles are made out of turned-ingot Stainless steel providing easy washing and sterilization. The solid Stainless steel structure guarantees excellent resistance to wear.

  • Keg filling range: 10-50 liter (2.6 -13.2 gallons)
  • Product handled: Beer
  • Washing heads: 4
  • Filling heads: 2
  • Liter counter accuracy: ± 0.20%
  • Average filling accuracy: ± 1.5%
  • Accident-prevention: protection Barriers with stop blocks
  • Sanitization – sterilization: Water-chemical-Steam

PRODUCTION:

  • Maximum hourly keg production 20/30 liter*: 90
  • Maximum hourly keg production 50 liter*: 65
  • Maximum hourly keg production 20/30 Liter with performance kit (126k229+126k037)*: 105
  • Maximum hourly keg production 50 Liter with performance kit (126k229+126k037)*: 80

CONSTRUCTION MATERIALS:

  • Construction material: Aisi 304 L Stainless steel
  • Material in contact with the liquid: Aisi 304/316L Stainless steel & EPDM/PTFE/Silicone
Description

TECHNICAL DATA:

  • Height of the work table: 1,010 mm (39.7 inches)
  • Dimensions WxDxH: 5,000 x 2,440 x 2,320 mm (196.8 x 96 x 91.3 inches)
  • Weight: 2,600 kg (5732 lbs.)
  • Basic detergent tank capacity: 200 liters (52.8 gallons)
  • Acid detergent tank capacity: 160 liters (42.2 gallons)
  • Filler’s installed power (kW): 4.5 kW (6 hp)
  • Power of the resistances, if present: 9 kW (12 hp) 400V, 50Hz, 3-phase
  • Maximum liquid flow rate: 5,400 liters/hr (1,426.5 gallons/hr)
  • Product Pressure: 2 Bar
  • Air pressure: 6 Bar
  • Air flow rate (N): 1,900 liters/min (502 gallons/min)
  • Air consumption (N): 1,200 liters/min (317 liters/min)
  • CO2 pressure: 6 Bar
  • CO2 flow rate (N): 370 liters/min (97.7 gallons/min)
  • CO2 consumption (N): 190 liters/min (50 gallons/min)
  • Water pressure: 3 Bar
  • Water flow rate: 7,200 liters/hr (1,902 gallons/hr)
  • Maximum pressure rate for heating, if provided: 2 BAR
  • Minimum steam pressure: 2.5 Bar
  • Heating steam: 24 kg/hr (53 lbs./hr)
  • Sterilization steam: 24 kg/hr (53 lbs./hr)
  • Product: 1 inch (DN 25 F)
  • Compressed air: ½ inch F gas
  • CO2: ½ inch F gas
  • Detergent-heating steam: ½ inch F gas
  • Sterilization steam: 1 inch (DIN 25 F)
  • Water: ½ inch clamp
  • Electricity supply: Depends on the installed pumps
