Mak Rotary Self-Adhesive Labeler – Up to 5 Removable Modules
Self-Adhesive – Mak Rotary Up to 5 Removable Modules

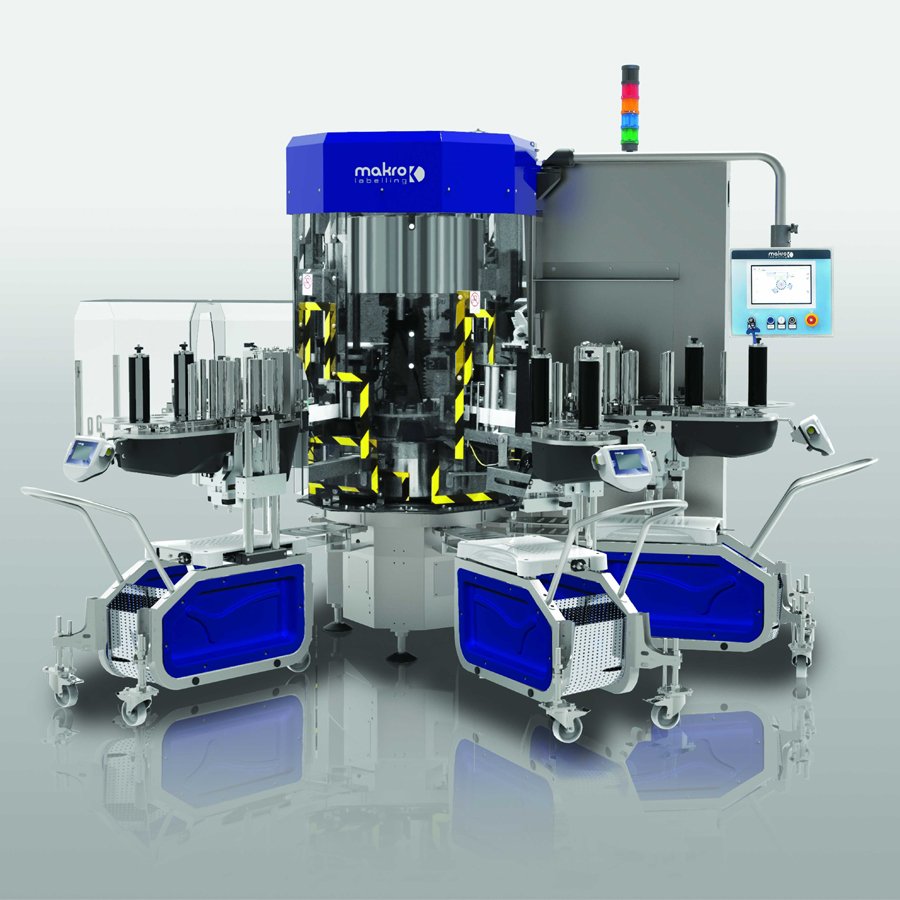

For small businesses wanting the modularity of Makro Labelling machines, the MAK rotary removable category (up to 5 stations) offers the compact size of the MAK Rotary fixed but with all the benefits of modules, making maintenance work easier for the operator.
The machine’s modularity makes it easy to change the type of production.
The module on the labelling station around the main carousel may be FIXED or REMOVABLE, hooking and unhooking directly onto the touchscreen panel.

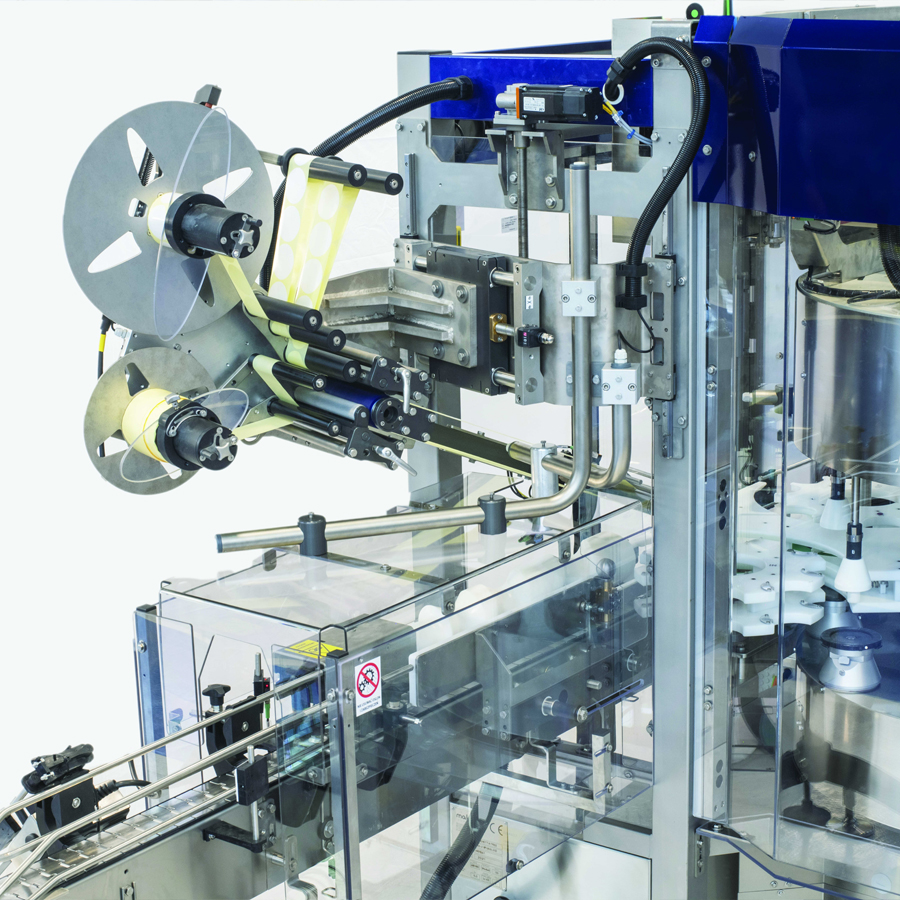

SLIM 50 and SLIM 85 self-adhesive labelling stations, ideal for medium/low rates of production, guarantee high production efficiency and rapid assembly of label reels and require low maintenance.
They are controlled entirely through touch panels, with intuitive control to optimize production and obtain outstanding results.
A number of options may be installed on these models on request, including Makro’s patented optic centring and label control systems: Follower, Raptor and Alice.
- Modular
- Adjustable
- Flexible
Description
Machines
| Model | Speedb/h | Machine ⌀ mm |
Platform | Stations |
|---|---|---|---|---|
| MAK-1 | 3.500 – 11.500 | 520 | 4 up to 12 | 1 up to 3 |
| MAK-2 | 6.000 – 18.000 | 780 | 6 up to 18 | 1 up to 4 |
| MAK-3 | 8.000 – 24.000 | 1040 | 8 up to 24 | 1 up to 5 |
Labelling units
| Station | Production speedm/min | Reel ⌀ mm |
Model |
|---|---|---|---|
| SLIM 50 | 50 | 300 | MAK-1/2 |
| SLIM 85 | 85 | 400 | MAK-2/3 |
| SLIM 100 | 100 | 400 | MAK-2/3 |
- Modular rotary labelling machines for medium/low speeds
- Ease of operator maintenance
- High labelling precision thanks to the new “Slim” version of MAK stations
