SK FRXU SERIES
General Details
Technical Info
Documents
General Details

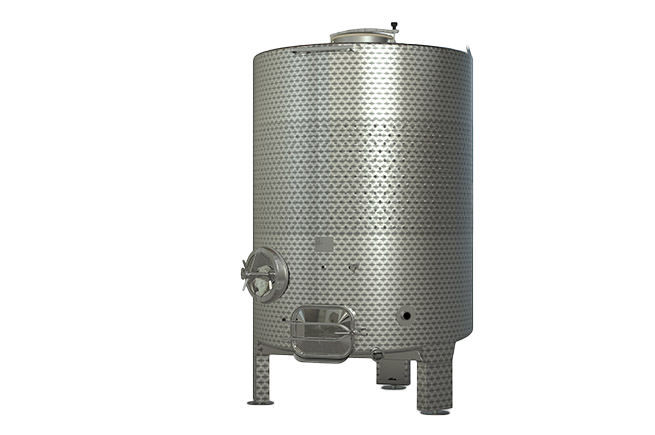

Fixed Capacity Red Wine Tanks – FRXU
- Multipurpose tanks with two manways, a sloped bottom and a solid lid with manway.
- Intended for fermentation and storage under atmospheric pressure.
- Double or custom cooling jackets available upon request.
- Leg extensions with height adjustment and screw plates for securing the tank to the floor, available upon request.
- Accessories and customized options available.
Available in sizes ranging from 500 to 2,000 gallon
Technical Info
| FUNCTION | FR500GAL | FR750GAL | FR1000GAL | FR1500GAL | FR2000GAL |
Nominal volume | 500 gal | 750 gal | 1000 gal | 1500 gal | 2000 gal |
Geometrical volume | 549 gal | 778 gal | 1032 gal | 1486 gal | 2076 gal |
Diameter | 46 inch | 54 inch | 63 inch | 75 inch | 81 inch |
Wall height | 79 inch | 79 inch | 79 inch | 79 inch | 95 inch |
Total height | 108 inch | 108 inch | 109 inch | 110 inch | 126 inch |
Nr. of legs | 3 | 3 | 3 | 4 | 4 |
Weight (approx) | 463 lbs | 573 lbs | 668 lbs | 908 lbs | 1124 lbs |
*Not binding data.
Contact us for a custom sized tank!
