General Details

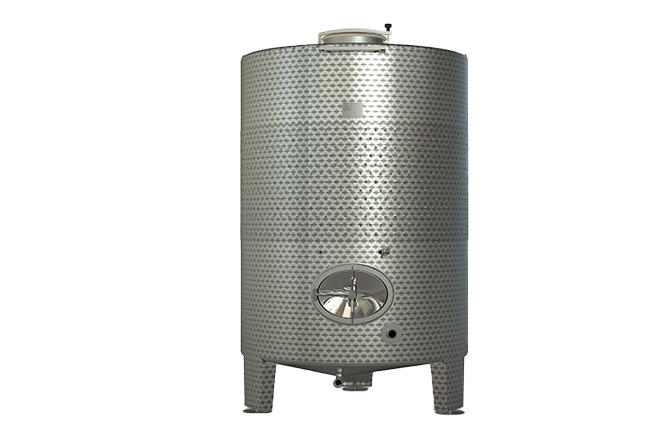

SK Fixed Capacity White Wine Tanks – FWXU
- Multipurpose tanks with a single manway, a conical bottom and a solid top with manway.
- Intended for fermentation and storage under atmospheric pressure.
- Double or custom cooling jackets available upon request.
- Leg extensions with height adjustment and screw plates for securing the tank to the floor, available upon request.
- Accessories and customized options available.
Available in sizes ranging from 500 to 2,000 gallon
Technical Info
| FUNCTION | FW500GAL | FW750GAL | VFW1000GAL | FW1500GAL | FW2000GAL |
| Nominal volume | 500 gal | 750 gal | 1000 gal | 1500 gal | 2000 gal |
| Geometrical volume | 534 gal | 815 gal | 1088 gal | 1590 gal | 2076 gal |
| Diameter | 44 inch | 54 inch | 63 inch | 75 inch | 81 inch |
| Wall height | 79 inch | 79 inch | 79 inch | 79 inch | 89 inch |
| Total height | 105 inch | 106 inch | 106 inch | 107 inch | 118 inch |
| Nr. of legs | 3 | 3 | 3 | 4 | 4 |
| Weight (approx) | 372 lbs | 490 lbs | 593lbs | 778 lbs | 892 lbs |
*Not binding data.
Contact us for a custom sized tank!
